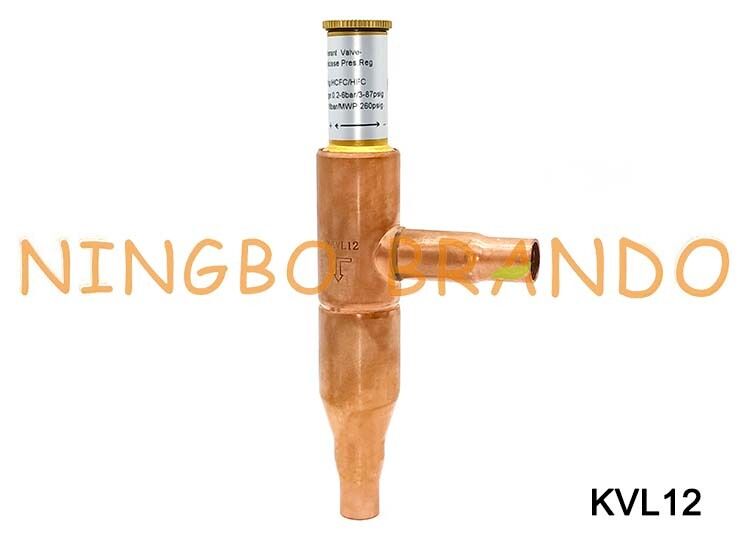

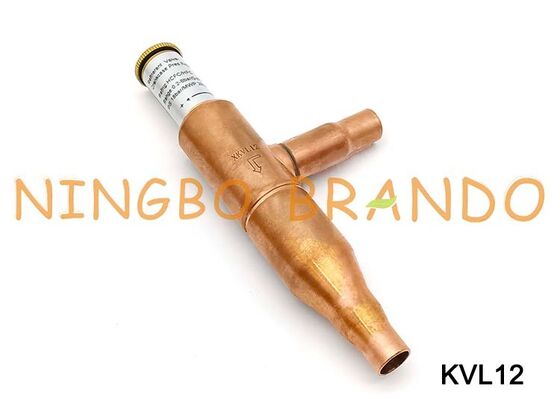

Name: Crankcase pressure regulator Danfoss Type KVL 12 034L0043
Brand: Ningbo Brando Hardware Co., Ltd
SKU: KVL 12
Price: 65.00 USD
Availability: InStock

Thuis Producten De Klep van de koelingssolenoïde

Crankcase pressure regulator Danfoss Type KVL 12 034L0043

Productdetails:

Plaats van herkomst:	China
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	KVL 12

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	5 stuks
Prijs:	Onderhandelbaar
Verpakking Details:	Binnendoos, karton, pallet
Levertijd:	Onderhandeling
Betalingscondities:	T/T,Western Union,MoneyGram
Levering vermogen:	100.000 stuks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	Crankcase-drukregelaar	Poortgrootte:	1/2“
Verbinding:	Soldeer (ODF)	Verordening Waaier:	0 tot 6 versperren, Fabriek Plaatsend = 2 bar
Maximale werkdruk:	14 bar	Gemiddelde temperatuurbereik:	-200 aan +150℃
Koelmiddel:	CFC's, HCFC's, HFC's	Maximum p-Band:	2.0 bar
Markeren:	Crankcase pressure regulator KVL 12 , Danfoss KVL 12 , Crankcase pressure regulator Type KVL

Crankcase pressure regulator Danfoss Type KVL 12 034L0043

A CPR or crankcase pressure regulator is nothing more than a pressure reducing valve. When installed on a compressor suction inlet and properly adjusted, the CPR will prevent the compressor suction pressure from ever rising above the CPR's setting. The CPR will help prevent refrigeration compressor from overloading during startup on refrigeration systems that may experience heavy load conditions such as a freezer after a defrost cycle.

Product video of KVL 12 Crankcase Pressure Regulator:

Technical Data of KVL Crankcase Pressure Regulator:

Refrigerants	CFC, HCFC, HFC
Regulation Range	0 to 6 bar, Factory Setting = 2 bar
Max Working Pressure	14 bar
Max Test Pressure	KVL 12-22: 28 bar KVL 28-35: 25.6 bar
Medium Temperature Range	-200 to +150℃
Max P-band	KVL 12-22: 2.0 bar KVL 28-35: 1.5 bar

Ordering Code of KVL Crankcase Pressure Regulator:

Model	Rated Capacity (kW)				Flare	Code no	Solder	Code no
Model	R22	R134a	R404A/R507	R407C	Flare	Code no	Solder	Code no
KVL 12	7.1	5.3	6.3	6.5	1/2''	034L0041	1/2''	034L0043
KVL 15	7.1	5.3	6.3	6.5	5/8''	034L0042	5/8''	034L0049
KVL 22	7.1	5.3	6.3	6.5			7/8''	034L0045
KVL 28	17.8	13.2	15.9	16.4			1 1/8''	034L0046
KVL 35	17.8	13.2	15.9	16.4			1 3/8''	034L0052

Dimension of KVL Crankcase Pressure Regulator:

Model	Connection		H1	H2	B1	C Solder	φ D
Model	Flare	Solder	H1	H2	B1	C Solder	φ D
KVL 12	1/2''	1/2''	7.047''	3.898''	2.520''	0.375''	1.181''
KVL 15	5/8''	5/8''	7.047''	3.898''	2.520''	0.5''	1.181''
KVL 22		7/8''	7.047''	3.898''	2.520''	0.625''	1.181''
KVL 28		1 1/8''	10.197''	5.945''	4.134''	0.875''	1.693''
KVL 35		1 3/8''	10.197''	5.945''	4.134''	1''	1.693''

More Refrigeration Parts for you to choose:


Refrigeration Solenoid Valve	Reversing Valve	Refrigeration Ball Valve

Hot Gas Bypass Valve	Expansion Valve	Sight Glass

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
