Name: FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
Brand: Ningbo Brando Hardware Co., Ltd
SKU: FDF6A
Price: 65.00 USD
Availability: InStock

Thuis Producten De Klep van de koelingssolenoïde

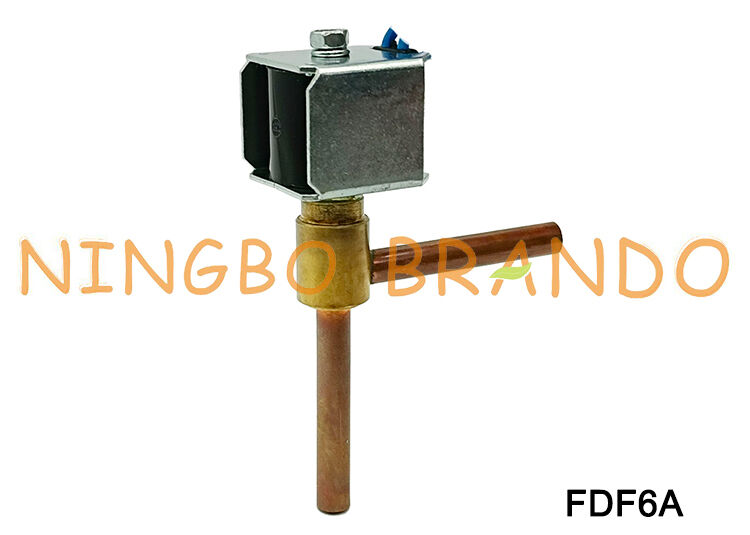

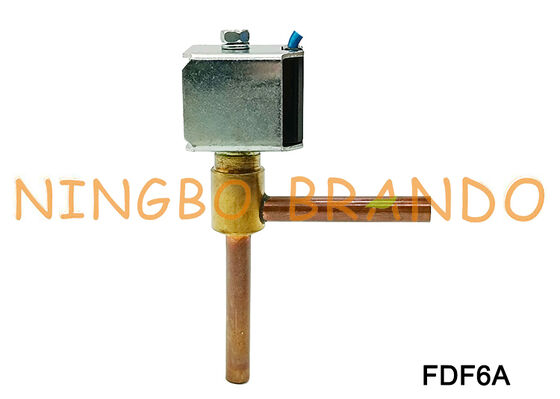

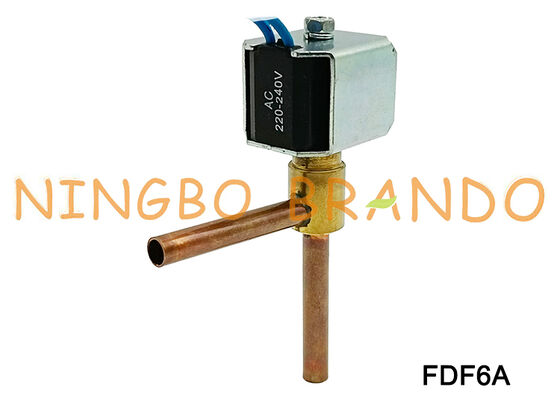

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump

Productdetails:

Plaats van herkomst:	China
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	FDF6A

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	5 stuks
Prijs:	Onderhandelbaar
Verpakking Details:	Binnendoos, karton, pallet
Levertijd:	Onderhandeling
Betalingscondities:	T/T,Western Union,MoneyGram
Levering vermogen:	100.000 stuks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	De Klep van de koelingssolenoïde	Buis OD (mm):	7,94
Buis OD (duim):	5/16'	Opening van de opening:	5.8mm
Draadtype:	Vliegende Lood	Handeling:	Pilot uitgevoerd
Spanning:	24 V DC, 24 V AC, 110 V AC, 220 V AC	Sollicitatie:	Airconditioning, warmtepomp, ijsmachine, vriezer, koeler, enz.
Maximale bedrijfsdruk:	4.5 MPa
Markeren:	FDF6A refrigeration solenoid valve , FDF6A Two-Way Solenoid Valve , FDF6A58 Refrigeration Solenoid Valve

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump

Product Features of FDF series solenoid valves:

1. Direct operated or pilot operated, 2 way normally closed solenoid valve. Normally open type is available.

2. For use with non-corrosive refrigerant.

3. Compactly designed for use in small appliances produced in quantity such as room air conditioners, dehumidifiers, heat pumps and ice making machines.

4. Various piping configuration available.

Technical Data of FDF NC Series Solenoid Valve:

Model	FDF2A94	FDF2.5A06	FDF3A08	FDF4A10	FDF6A58	FDF8A21	FDF11A05	FDF13A07
Actuation	Direct	Pilot
Kv(m³/h)	0.08	0.2	0.26	0.3	0.56	1.29	2.4	3.44
Max. OPD (MPa)	3.4	3.4	3.4	3.4	3.4	2.8	2.8	2.8
Min. OPD (MPa)	0	0.01	0.01	0.01	0.01	0.01	0.02	0.02
MOP (MPa)	4.5
Normal Position	NC
Tube OD (inch)	1/4''	1/4''	5/16''	1/4''	5/16''	3/8''	1/2''	5/8''
Tube OD (mm)	6.35	6.34	7.94	6.35	7.94	9.52	12.7	15.88

Main Dimension of FDF NC Series Solenoid Valve:

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump 0

Model	Measurement (mm)
Model	L	L1	L2
FDF 2A 94	67	32	34
FDF 2.5A 08	85	38	38
FDF 3A 08	81	35	36
FDF 4A 10	81	35	38
FDF 6A 58	81	35	36
FDF 8A 21	114	62	62
FDF 11A 16	113	61	61
FDF 13A 12	114	62	62
