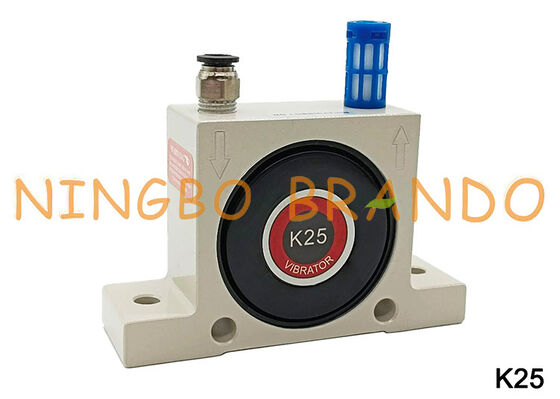

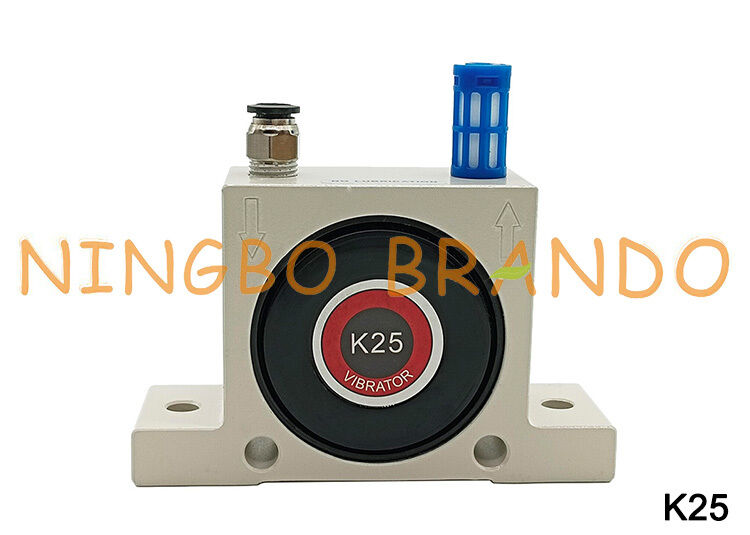

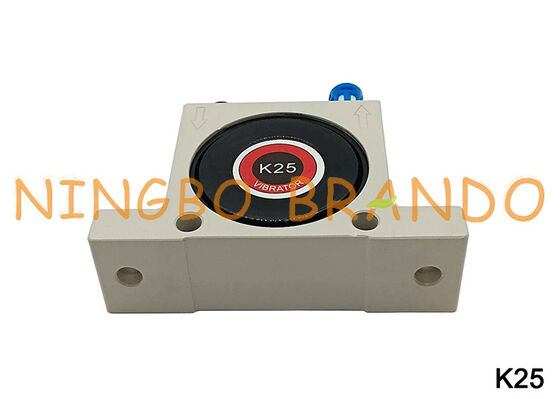

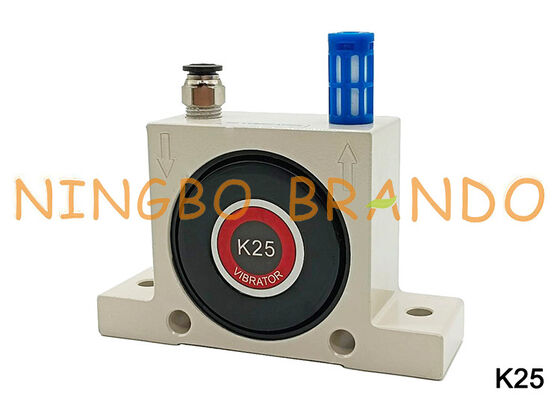

Name: K25 Ball Vibrator K Series Pneumatic Ball Vibrator For Industrial Hopper
Brand: Ningbo Brando Hardware Co., Ltd
SKU: K25
Price: 49.10 USD
Availability: InStock

Thuis Producten pneumatische slangmontage

K25 Ball Vibrator K Series Pneumatic Ball Vibrator For Industrial Hopper

Productdetails:

Plaats van herkomst:	China
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	K25

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 ST
Prijs:	Onderhandelbaar
Verpakking Details:	Binnendoos, karton, pallet
Levertijd:	Onderhandeling
Betalingscondities:	T/T,Western Union,MoneyGram
Levering vermogen:	100.000 stuks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:

Pneumatische zuiger vibrator

Poortgrootte:

G1/4“

Trilling (6 bar):

14000 t/min

Middelpuntvliedende kracht (6 bar):

2050 N

Markeren:

K-25 Pneumatic Ball Vibrator

Pneumatic Ball Vibrator K25

Findeva K25 Ball Vibrator

K25 Ball Vibrator K Series Pneumatic Ball Vibrator For Industrial Hopper

This is K25 pneumatic ball vibrator. Pneumatic vibrator is a versatile piece of equipment that is essential to many industries. For example, the pneumatic vibrator is used to remove excess moisture and pockets of air from freshly poured concrete ensuring that the end result is uniform, attractive and above all, safe. In agricultural settings these easy to use vibrators are responsible for emptying silos, among other things, while in pharmaceuticals a pneumatic vibrator can separate fine powders or be used as a feeding mechanism.

Main Dimension of K Series Pneumatic Ball Vibrators:

K25 Ball Vibrator K Series Pneumatic Ball Vibrator For Industrial Hopper 0

Model	A (mm)	Width (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (Thread)
K-8	50	20	86	68	12	7	40	G1/4''
K-10	50	20	86	68	12	7	40	G1/4''
K-13	65	24	113	90	16	9	50	G1/4''
K-16	65	27	113	90	16	9	50	G1/4''
K-20	80	33	128	104	16	9	60	G1/4''
K-25	80	38	128	104	16	9	60	G1/4''
K-30	100	44	160	130	20	11	80	G3/8''
K-36	100	50	160	130	20	11	80	G3/8''

Technical Data of K Series Pneumatic Ball Vibrators:

Model	Vibrations (x1000 RPM)			Centrifugal Force (N)			Air Consumption (l/min)
Model	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar
K-8	25.5	31.0	35.0	130	260	360	83	145	195
K-10	22.5	28.0	34.5	250	470	710	92	150	200
K-13	15.0	18.5	22.5	320	550	870	94	158	225
K-16	13.0	17.0	19.5	450	800	1100	122	200	280
K-20	10.5	14.5	16.5	720	1220	1720	130	230	340
K-25	9.2	12.2	14.0	930	1570	2050	160	290	425
K-30	7.8	9.7	12.5	1510	2470	3210	215	375	570
K-36	7.3	9.0	10.0	2060	3150	4050	260	475	675

Construction of K Series Pneumatic Ball Vibrators:

K25 Ball Vibrator K Series Pneumatic Ball Vibrator For Industrial Hopper 1
