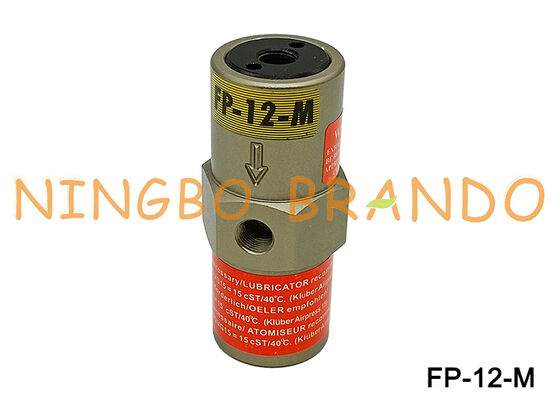

Name: FP-12-M Pneumatic Piston Vibrator For Industrial Hopper Bin
Brand: Ningbo Brando Hardware Co., Ltd
SKU: FP-12-M
Price: 49.10 USD
Availability: InStock

Thuis Producten pneumatische slangmontage

FP-12-M Pneumatic Piston Vibrator For Industrial Hopper Bin

Productdetails:

Plaats van herkomst:	China
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	FP-12-M

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 ST
Prijs:	Onderhandelbaar
Verpakking Details:	Binnendoos, karton, pallet
Levertijd:	Onderhandeling
Betalingscondities:	T/T,Western Union,MoneyGram
Levering vermogen:	100.000 stuks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:

Pneumatische zuiger vibrator

Poortgrootte:

G1/8'

Frequentie:

5000 tot 6700 VPM

Centrifugale kracht:

34 tot en met 76 N

Markeren:

Automatic FP-12-M

Pneumatic Vibrator FP-12

Linear Pipeline Piston Vibrator

FP-12-M Pneumatic Piston Vibrator For Industrial Hopper Bin

FP Series pneumatic piston vibrators are lightweight, compact, durable, efficient, and quiet. They are easy to install and maintain, and are designed to work continuously in the most rigorous conditions. Hard-coated alloy bodies are corrosion resistant for long life.

FP Series vibrators produce linear vibrations with a force range from 7.2 to over 320 pounds, and frequencies range from 2400 to 9300 VPM, depending on the model and air pressure. They can be mounted in any position, and amplitude and frequency are infinitely adjustable by varying the air pressure. The piston is air cushioned, and a unique exhaust system absorbs noise for quiet operation.

The power to weight ratio of these units makes them ideal for many applications, some of the most common being the feeding of small parts, chemical powders, seeds, grains, flour, sugar, and other food products.

Technical Data:

Model	Frequency VPM (x1000)			Centrifugal Force						Air Consumption / minute
	2 bar	4 bar	6 bar	2 bar	29 psi	4 bar	58 psi	6 bar	87 psi	2 bar	29 psi	4 bar	58 psi	6 bar	87 psi
	29 psi	58 psi	87 psi	N	LBS	N	LBS	N	LBS	Litr.	CF	Litr.	CF	Litr.	CF
FP-12-S	6.2	7.8	9.3	34	7.7	70	16	92	21	0.8	0.03	7.5	0.26	25	0.88
FP-12-M	5	6	6.7	34	7.7	58	13	74	17	0.5	0.02	4	0.14	19	0.67
FP-12-L	4	4.8	5.4	32	7.2	58	13	81	18	1	0.04	3	0.11	20	0.71
FP-18-S	5	6.4	7.7	66	15	134	30	187	42	5	0.18	33	1.16	57	2
FP-18-M	4	5	5.9	68	15	134	30	188	42	4	0.14	28	1	52	1.84
FP-18-L	3.1	4	4.6	64	14	150	34	206	46	5	0.18	23	0.81	46	1.62
FP-25-S	3.6	4.3	5.5	126	28	270	61	416	94	13	0.46	54	1.91	93	3.28
FP-25-M	3	3.8	4.2	142	32	364	82	504	113	23	0.81	50	1.76	87	3.07
FP-25-L	2.4	3.1	3.7	186	42	392	88	594	134	18	0.64	62	2.19	93	3.28
FP-35-S	3.8	4.7	5.8	294	66	668	150	1038	234	23	0.81	101	3.56	162	5.72
FP-35-M	3	4	4.6	248	56	778	175	1080	243	24	0.85	83	2.93	141	4.98
FP-35-L	2.4	3.1	3.6	282	63	680	153	1066	240	38	1.34	89	3.14	135	4.77
FP-50-M	1.8	2.3	2.8	490	110	970	218	1600	360	48	1.67	100	3.48	190	6.61
FP-65-M	1.9	2.4	2.7	610	137	1400	315	2170	489	90	3.13	160	5.57	270	9.39
FP-95-M	1.8	2.4	2.8	1500	338	2620	590	4270	962	170	5.91	320	11.13	450	15.65

Main Dimension:

Model	A	B	C	D	E	F
FP-12-S	71mm	31mm	34mm	M8	G1/8"	G1/8"
FP-12-M	81mm	31mm	34mm	M8	G1/8"	G1/8"
FP-12-L	94mm	31mm	34mm	M8	G1/8"	G1/8"
FP-18-S	81mm	40mm	42mm	M10	G1/8"	G1/8"
FP-18-M	94mm	40mm	42mm	M10	G1/8"	G1/8"
FP-18-L	109mm	40mm	42mm	M10	G1/8"	G1/8"
FP-25-S	98mm	48mm	50mm	M12	G1/8"	G1/4"
FP-25-M	116mm	48mm	50mm	M12	G1/8"	G1/4"
FP-25-L	136mm	48mm	50mm	M12	G1/8"	G1/4"
FP-35-S	98mm	58mm	65mm	M12	G1/4"	G1/4"
FP-35-M	116mm	58mm	65mm	M12	G1/4"	G1/4"
FP-35-L	136mm	58mm	65mm	M12	G1/4"	G1/4"
FP-50-M	157mm	84.5mm	/	/	G1/4"	G1/4"
FP-60-M	157mm	95mm	/	/	G1/4"	G1/4"
FP-95-M	157mm	140mm	/	/	G3/8"	G3/8"

Our Production:

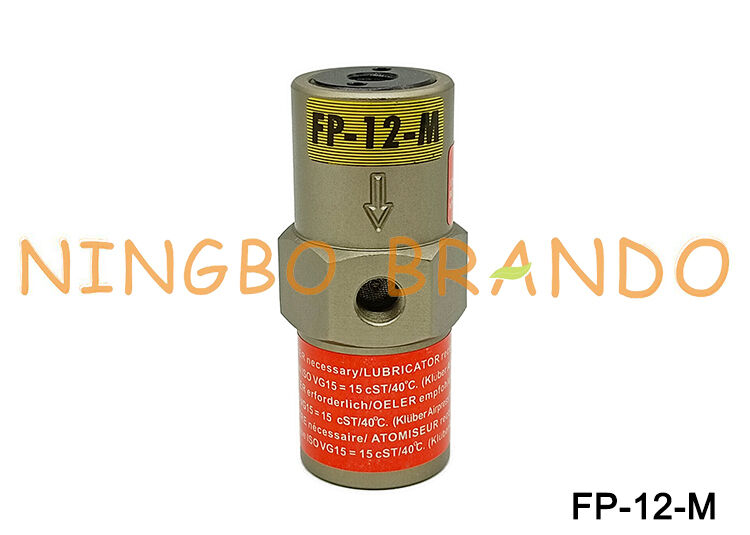

FP-12-M Pneumatic Piston Vibrator For Industrial Hopper Bin 1

More Pneumatic Vibrators:


Pneumatic Turbine Vibrator	Pneumatic Ball Vibrator	Pneumatic Roller Vibrator	Pneumatic Air Knocker

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
