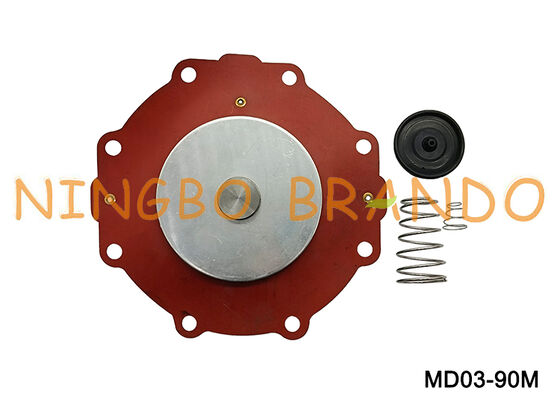

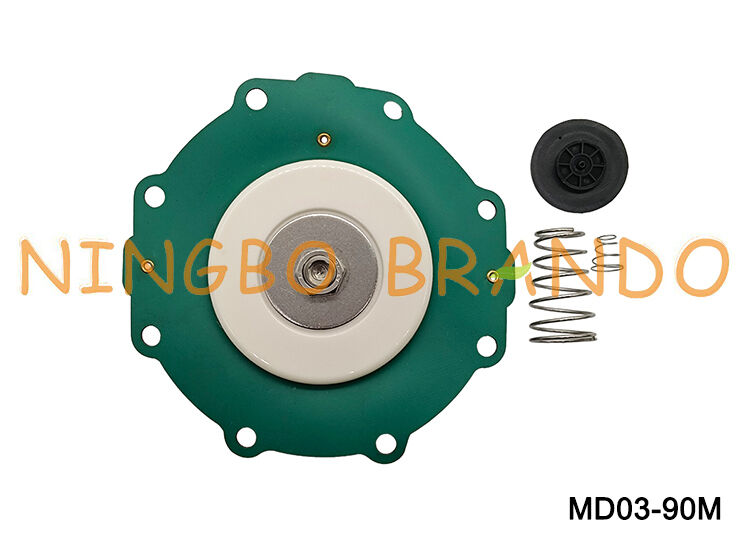

Name: MD03-90M Diaphragm Repair Kit For 3-1/2'' TAEHA TH-5490-M TH-4490-M
Brand: Ningbo Brando Hardware Co., Ltd
SKU: MD03-90M
Price: 49.10 USD
Availability: InStock

Thuis Producten De Uitrusting van de diafragmareparatie

MD03-90M Diaphragm Repair Kit For 3-1/2'' TAEHA TH-5490-M TH-4490-M

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ningbo BRANDO
Certificering:	None
Modelnummer:	MD03-90M

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 set
Prijs:	Onderhandelbaar
Verpakking Details:	binnendozen, dozen, pallets
Levertijd:	7 werkdagen
Betalingscondities:	T/T,Western Union,Paypal
Levering vermogen:	100000 stuks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	Pulsventielmembraan	Diafragmamateriaal:	NBR
Materiaal zitting:	Nylon	Gemonteerde pulskleppoort:	3 1/2“
Gemonteerd pulsventielmodel:	TH-5490-M, TH-4490-M	1 set:	1pc groot Diafragma, het Kleine Diafragma van 1pc, 2pcs-de Lentes
Markeren:	Taeha Diaphragm Kit MD03-90M , Taeha Membrane MD03-90M , TAEHA Pulse Jet Valve Membrane

MD03-90M Diaphragm Repair Kit For 3-1/2'' TAEHA TH-5490-M TH-4490-M

MD03-75, MD03-75M Diaphragm (Membrane) for Taeha pulse valve TH-5474-B, TH-4475-B, TH-5475-M, TH-4475-M; The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Ordering Code of Diaphragm For Taeha Pulse Valve:

BRANDO Model	Diaphragm Model	Pulse Valve Port Size	Pulse Valve Model No	Diaphragm Color	Diaphragm Material
DH20	MD01-20 MD02-20	3/4''	TH-5820-B TH-4820-B TH-5825-B TH-5820-C TH-4820-C	Red & Green	NBR
DH25	MD01-25 MD02-25	1''	TH-4825-B TH-5825-C TH-4825-C TH-5840-F TH-4840-F
DH25	MD01-25M	1''	TH-5825-M
DH30	MD01-30 MD02-30 MD03-30	1 1/4''	TH-5830-B TH-5430-B TH-4830-B TH-4430-B
DH30	MD03-30M	1 1/4''	TH-5430-M TH-4430-M
DH40	MD01-40 MD02-40 MD03-40	1 1/2''	TH-5840-B TH-5440-B TH-4840-B TH-4440-B TH-5840-C TH-5440-C TH-4840-C TH-4440-C TH-5850-F TH-5450-F TH-4850-F TH-4450-F
DH40M	MD03-40M	1 1/2''	TH-5440-M TH-4440-M
DH50	MD03-50	2''	TH-5450-B TH-4450-B
DH50M	MD03-50M	2''	TH-5450-M TH-4450-M
DH60	MD03-60 MD04-60	2 1/2''	TH-5460-B TH-4460-B TH-5460-S TH-4460-S
DH75	MD03-75	3''	TH-5475-B TH-4475-B
DH75	MD03-75M	3''	TH-5475-M TH-4475-M
DH90M	MD03-90M	3 1/2''	TH-5490-M TH-4490-M
DH100M	MD03-00M	4''	TH-5400-M TH-4400-M

Dimension of MD03-75, MD03-75M Diaphragm:


Main Diaphragm	Secondary Diaphragm

Pulse Valve Diaphragm Production Pictures:

Related Products:


Solenoid Coil	Solenoid Armature	Pulse Valve	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
