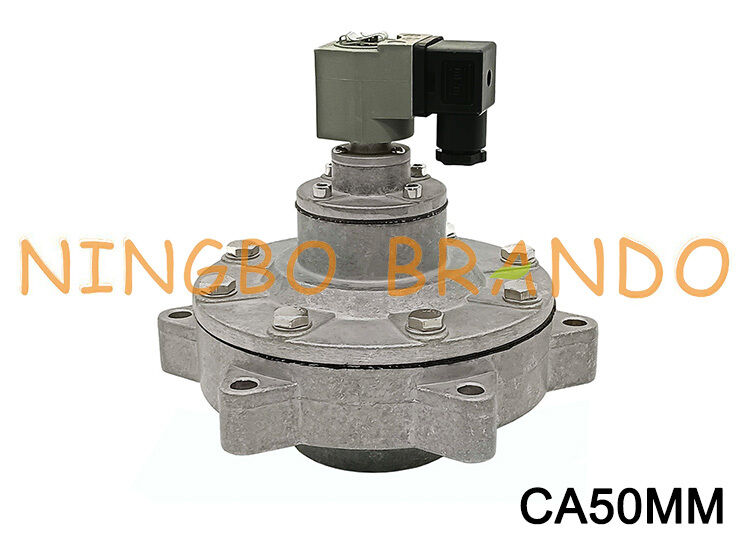

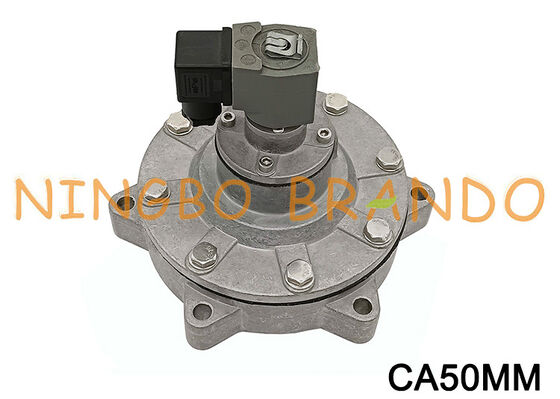

CA50MM Goyen Type MM Series Manifold Mount Pulse Valve 2''

CA50MM Goyen Type MM Series Manifold Mount Pulse Valve 2''

The role of pulse jet valves in bag filters: The cleaning process of the bag filter is to cut off the clean air outlet duct of the chamber, so that the bag of the room is in a state of no airflow (the compartment is shut off and cleaned). Then, the pulse jet valve is opened and the pulsed air is cleaned by the compressed air. The closing time of the shut-off valve is enough to ensure that the dust peeled off from the filter bag after the spray is settled to the ash hopper, and the dust is prevented from being separated from the air bag after being separated from the surface of the filter bag. The phenomenon of the adjacent filter bag surface makes the filter bag clear, and the exhaust valve, pulse jet valve and ash discharge valve are fully controlled by the programmable controller.

Technical Data of CA50MM Electromagentic Valve:

Main Diemension of 2'' Embedded Valve for Reverse Jet Baghouse System:

Youtube Video about CA50MM Pulse Valve:

Details About CA50MM Diaphragm Pulse Valve:

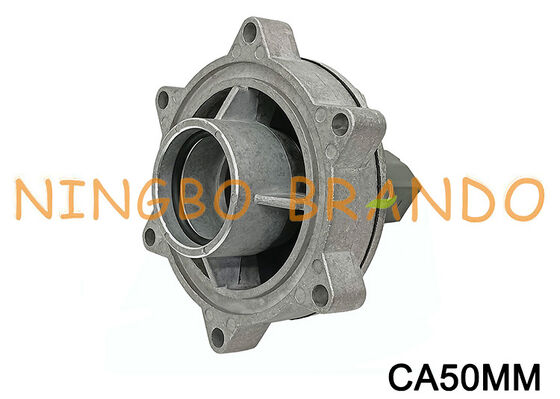

Construction of MM series pulse valve:

Body and Dresser Nuts: Aluminium (diecast)
Ferrule: 305 SS
Armature: 430FR SS
Diaphragm and seals: Nitrile or Viton
Spring: 304 SS
Screws: 302 or 304 SS
Outlet pipe: Schedule 40 wrought steel zinc
passivatedDiaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel

Features and benefits of CA50MM:

1. Installation easily, MM valves are installed through the tank.
2. Sensitive and reliable signal; Stable working
3. Low internal-resistance;Long operating-life
4. Most powerful air pulse due to full immersion design ; Large gas-displacement;High airflow impact-force
5. Ready for use in any dust collector design
6. Cost savings; urable materials and wide temperature range enhance lifespan ;Longer filter life, lower dust collector OPEX
7. With environmental and health & safety regulations
