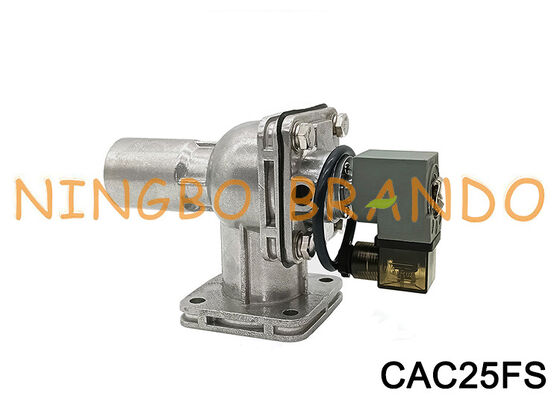

FLANGED VALVES: The flanged valves of the FS-series offer the best option when you use square tanks and prefer weldless flange connections. These diaphragm valves are designed for dust collectors and baghouses in which reverse pulse jet systems clean the filters.
1. Ready for use in any dust collector design * For noxious substance control and environmental dust management
2. Cost savings * Increased pulse efficiency, reduced energy consumption * Durable materials and wide temperature range enhance lifespan * Longer filter life, lower dust collector OPEX
3. Compliance With environmental and health & safety regulations
4. Ease of installation * No welding required with 90° connections directly onto square tanks * Camlock adapter available for attachment to round tanks
FS Series Parameter Table:
Model
CAC25FS
CAC45FS
Working Pressure
0.3MPa-0.8MPa
0.3MPa-0.8MPa
Voltage
AC24V, AC110W, AC220V, DC24V
Inlet and Out Pipe Size
1 1/2'' IN, 1''OUT
2'' IN, 1 1/2'' OUT
Valve Type
diaphragm valve
Action
pilot operated
Connection Type
flanged inlet port
Body Material
aluminum ADC12
Seal Material
NBR(Common)
Goyen Type CAC Series Electromagnetic Pulse Valve Kits Information:
Goyen Type CAC Series Electromagnetic Pulse Valve Detail:
Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
Goyen Type CAC Series Electromagnetic Pulse Valve Application:
Youtube Video Of Goyen Type CAC25FS Solenoid Valve For Dust Collector:
Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change √ Contact us if not the one you are looking for
