| Plaats van herkomst: | China |
| Merknaam: | Brando |
| Certificering: | CE |
| Modelnummer: | RCA25DD |
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Binnenkast, doos, pallet |
| Levertijd: | 4-8 dagen |
| Betalingscondities: | L/C, T/T, Western Union, Paypal, MoneyGram |
| Levering vermogen: | 100000 pc's per maand |
| Productnaam: | RCA25DD Pulse Jet-klep | Externe of integrale piloot: | Piloot op afstand |
|---|---|---|---|
| Afmeting inlaatleiding: | φ35,5 | Afmeting uitlaatpijp: | φ35,5 |
| Structuur: | Diafragma | Diafragma -materiaal: | NBR (buna) |
| Pulse Jet-ventiel met schroefdraad: | CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T | Dresser Nut Pulse Jet-klep: | CA25DD, RCA25DD, CA45DD |
| Dompelpulsstraalventiel: | CA50MM, CA62MM, CA76MM, CA89MM | Flense pulsstraalklep: | CAC25FS, CAC45FS |
| Remote Pilot Pulse Jet-klep: | RCA3D2, RCA25DD, RCA45T, RCA50T | Werkdrukbereik: | 0,35 tot 0,85 MPa |
| Spanning: | 24VDC, 220VAC | ||
| Markeren: | Goyen RCA25DD Pulse Valve,Goyen Pulse Valve RCA25DD,Remote Pilot Valve RCA25DD |
||

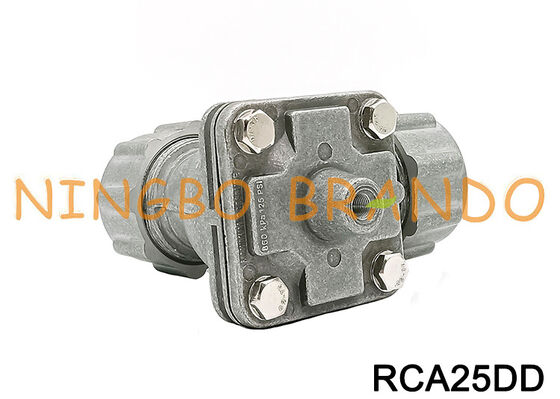

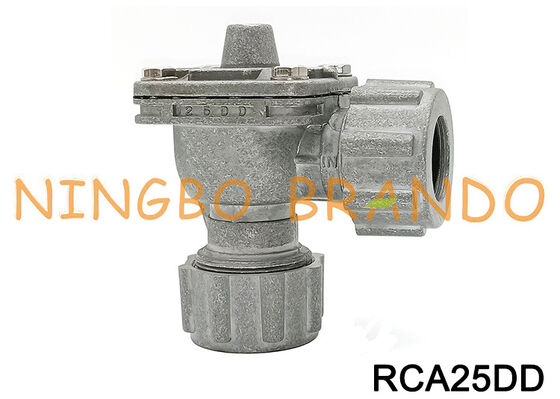

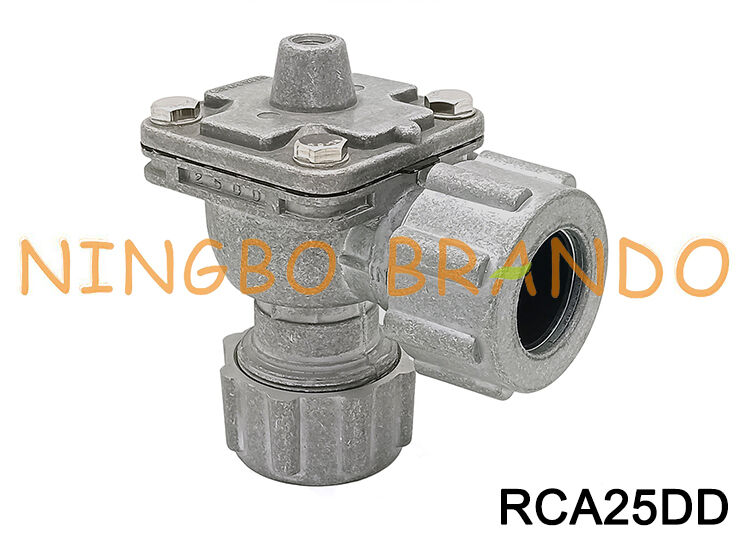

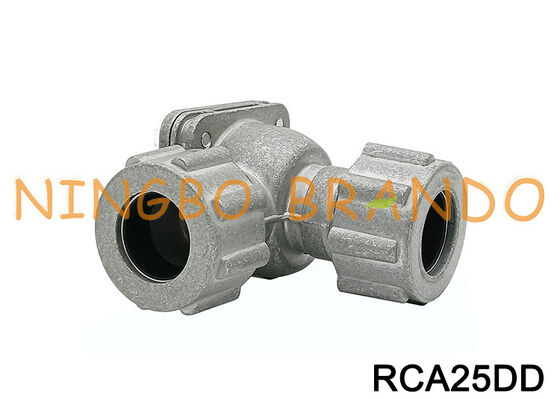

Goyen Type RCA25DD G1'' Dust Collector Remote Pilot Operated Diaphragm Valve
CA & RCA Series Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T
Pilot solenoid valves use the differential pressure of the medium over the valve ports to open and close. Also known as servo-assisted solenoids, these valves provide high flow rates and can operate at higher pressure and temperature ranges, with lower power consumption.
Technical data of DD Series Pulse Jet Valve:
List of All CA Series Pulse Jet Valves:
Main Dimension of RCA25DD Pulse Jet Valve:
![]()
Product Features:
1. Ready for use in any dust collector design
* For noxious substance control and environmental dust management
2. Cost savings
* Increased pulse efficiency, reduced energy consumption
* Durable materials and wide temperature range enhance lifespan
* Longer filter life, lower dust collector OPEX
3. Compliance
* With environmental and health & safety regulations
4. Ease of installation
* No welding required with 90° connections directly onto squaretanks
Brando Supply:
![]()
![]()
![]()
![]()
BFEC Pulse Jet Valve CA/RCA Pulse Jet Valve 353 Pulse Jet Valve Other Pulse Jet Valve
![]()
![]()
![]()
![]()
Pulse Controller Diaphragm Repair Kit Solenoid Valve Coil Solenoid Valve Armature Assembly
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any problem and inquiry!
