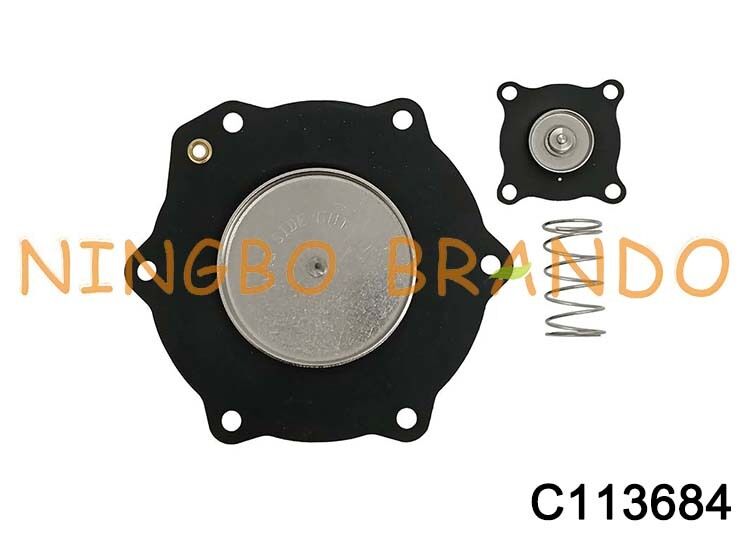

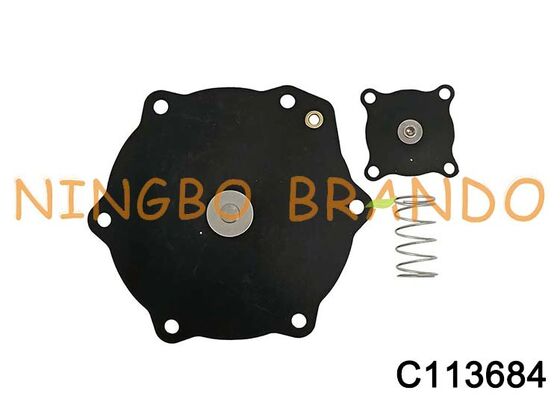

Name: C113684 Diaphragm Repair Kit For ASCO G353A048 G353A049 Pulse Jet Valve Spare Part
Brand: Ningbo Brando Hardware Co., Ltd
SKU: C113684
Price: 49.10 USD
Availability: InStock

Thuis Producten De Uitrusting van de diafragmareparatie

C113684 Diaphragm Repair Kit For ASCO G353A048 G353A049 Pulse Jet Valve Spare Part

Productdetails:

Plaats van herkomst:	NINGBO, CHINA
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	C113684

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	20 sets
Prijs:	Onderhandelbaar
Verpakking Details:	Plastic zak, Doos, Karton, Pallet
Levertijd:	4 tot 5 werkdagen
Betalingscondities:	T/T,Paypal,Western Union
Levering vermogen:	100000 sets per maand

Contact

Gedetailleerde productomschrijving

Productnaam:

Pulsklep diafragma

Geschikt pulsventielmodel:

G353A048, G353A049

Diafragma -materiaal:

NBR

1 set:

1x groot Diafragma, het Kleine Diafragma van 1x, 2x-de Lentes

Markeren:

ASCO C113684 Diaphragm

ASCO C113684 Membrane

C113684 2inch Diaphragm Kit

C113684 Diaphragm Repair Kit For ASCO G353A048 G353A049 Pulse Jet Valve Spare Part

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Ordering Code of Diaphragm For ASCO Pulse Valve:

Pulse Valve Port Size	Pulse Valve Model No	Diaphragm Model No	Diaphragm Material
3/4''	SCG353A043 SCG353G043 SGG353A043	C113444	TPE, NBR, FKM
1''	SCG353A044 SCG353G044 SGG353A044
3/4''	SCG353-052 SCG353G052 SGG353-052
1''	SCG353-053 SCG353G053 SGG353-053
1-1/2''	SCG353A047 SCG353G047 SGG353A047	C113827	NBR, FKM
1-1/2''	SCG353A065 SCG353G065 SGG353A065	C113827
2''	SCG353A050 SCG353G050 SGG353A050	C113685, C113686
2-1/2''	SCG353A051 SCG353G051 SGG353A051	C113685, C113686
3''	SCG353D060 SCG353G060	C123432, C123433
3''	SCXE353.060 SCR353G060	C113928
3/4''	G353A041	C113443	TPE, NBR, FKM
1''	G353A042
3/4''	G353-055
1''	G353-056
1-1/2''	G353A045	C113825	NBR, FKM
	G353-066	C113825
	G353A046	C113826
	G353A063	C113826
2''	G353A048	C113684
2-1/2''	G353A049	C113684

Dimension of C113684 Diaphragm:


Main Diaphragm	Secondary Diaphragm

Pulse Valve Diaphragm Production Pictures:
