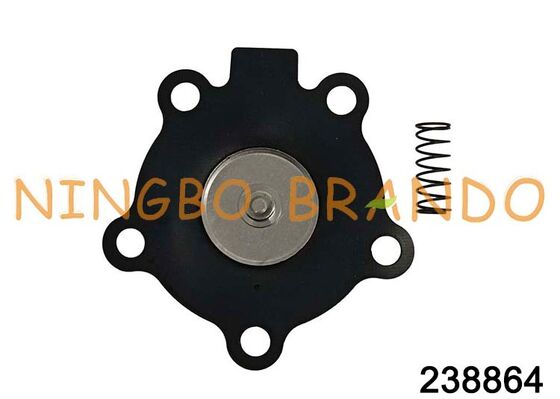

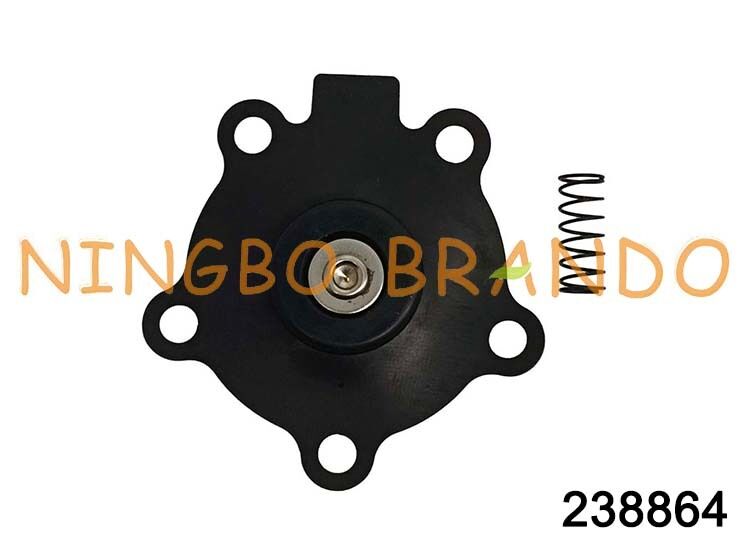

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004

Productdetails:

Plaats van herkomst:	NINGBO, CHINA
Merknaam:	BRANDO
Certificering:	CE, ISO
Modelnummer:	96875 (238864)

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	20 sets
Prijs:	Onderhandelbaar
Verpakking Details:	Plastic zak, Doos, Karton, Pallet
Levertijd:	4 tot 7 werkdagen
Betalingscondities:	T/T,Paypal,Western Union
Levering vermogen:	100000 sets per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	Pulsklep diafragma	Geïnstalleerd pulsventiel model nr.:	8353C033, 8353C030, 8353C004
Gemonteerde pulskleppoortmaat:	3/4 ''	Diafragma -materiaal:	NBR
1 set:	1 st Diafragma, 1 st Lente
Markeren:	ASCO Diaphragm 238864 , ASCO Diaphragm 96875 , ASCO Diaphragm Repair Kit

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

96875 (238864) Dimension:

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004 0

Reference No:

Integral Pilot Pulse Valve Model No	Remote Pilot Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Model	Diaphragm Model (10 pack)	Diaphragm Material
-	8353C033	3/4''	96875	238864	NBR diaphragm
-	8353C030	3/4''	96875	238864	NBR diaphragm
-	8353C004	3/4''	96875	238864	NBR diaphragm
-	8353C035	1''	200262	238866	HYTREL diaphragm
8353G041	-	1''	316563	238866	HYTREL diaphragm
8353G006	-	1''	300144	-	CR diaphragm, PA disc
8353G005	-	1-1/4''	300144	-	CR diaphragm, PA disc
8353G001	-	1-1/2''	300144	-	CR diaphragm, PA disc
-	8353H038	1-1/2''	276886	238870	HYTREL diaphragm
8353J039	-	1-1/2''	322108	238870	HYTREL diaphragm
8353G061	-	1-1/2''	316297	-	NBR diaphragm, PA disc
-	8353A062	1-1/2''	276884	-	NBR diaphragm, PA disc
8353G002	-	2''	300145	-	CR diaphragm, PA disc
-	8353 048	2''	256802	256797	CR diaphragm
8353G050	-	2''	316029	256797	CR diaphragm
8353G007	-	2 1/2''	176878	-	CR diaphragm, PA disc
8353G008	-	3''	176878	-	CR diaphragm, PA disc
