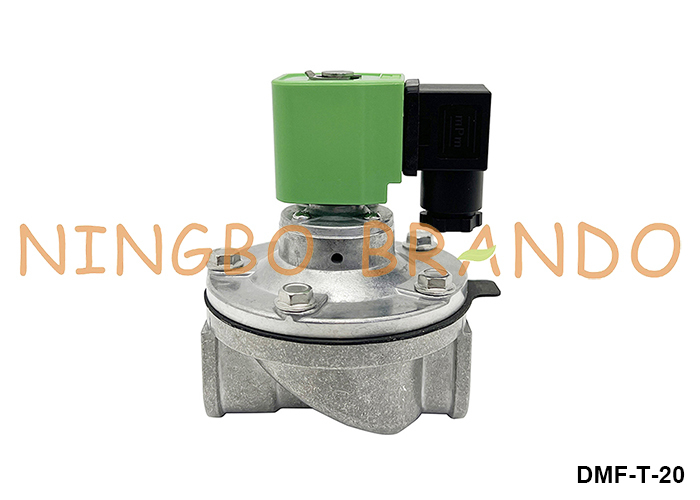

Name: DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through
Brand: Ningbo Brando Hardware Co., Ltd
SKU: DMF-T-20
Price: 49.10 USD
Availability: InStock

Thuis Producten Impuls Straalklep

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through

Productdetails:

Plaats van herkomst:	Ningbo, China
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	DMF-T-20

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	8 stks
Prijs:	Onderhandelbaar
Verpakking Details:	Doos, doos, pallet
Levertijd:	ongeveer 4 tot 7 werkdagen na aanlanding
Betalingscondities:	T/T, PayPal, Western Union
Levering vermogen:	50000 stks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	Pulsventiel	Poortgrootte:	G3/4''
Lichaamsmateriaal:	Aluminium	Diafragma -materiaal:	NBR (standaard), FKM (facultatief)
Werkdruk:	1 tot 8 bar	Spanning:	24VDC, 24VAC, 110VAC, 220VAC
Sollicitatie:	Stofcollector
Markeren:	SBFEC Pulse Valve DMF-T-20 , BFEC Pulse Valve DMF-T-20 , Straight Through Pulse Jet Valve

DMF-T-20 3/4'' Straight Through Pulse Valve

Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different design of pulse valve:

1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type

Technical Data:

Integral Pilot	DMF-T-20	DMF-T-25S	DMF-T-40S	DMF-T-50S	DMF-T-62S
Remote Pilot	MF-T-20	MF-T-25S	MF-T-40S	MF-T-50S	MF-T-62S
Port Size	G3/4''	G1''	G1-1/2''	G2''	G2-1/2''
Diaphragm Number	1	2
Diaphragm Material	NBR (Standard), FKM (Optional)
Body Material	Aluminum
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

DMF-T-20 Dimension:

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 0

Our Production:

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 1

Related Products:


Solenoid Coil	Solenoid Armature	Diaphragm	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

label:

Contactpersoon: Mr. Brandon Bao

Tel.: 86-13454729544

Fax: 86-574-83879820
