Thuis ProductenDe hydraulische Rol van de Solenoïdeklep

Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V

Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V

  • Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V
  • Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V
Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V
Productdetails:
Plaats van herkomst: China, Ningbo
Merknaam: BRANDO
Certificering: CE, ISO
Modelnummer: BB31675001
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 300 stks
Prijs: Onderhandelbaar
Verpakking Details: Doos, doos, pallet
Levertijd: 4 tot 7 werkdagen
Betalingscondities: L/C, T/T, Western Union, Paypal
Levering vermogen: 200000 stuks per maand
Contact
Gedetailleerde productomschrijving
Productnaam: Hydraulische solenoïde klepspoel Spanning: 12VDC, 24VDC, AC110V, AC220V
Stroom: 30W Aansluiting: DIN43650A
Isolatieklasse: H Beschermingsklasse: IP65
Referentienummer: 4251228, 4251230, 4251232,4251233, 4251234, 4251257, 438459, 4407514
Markeren:

Hydac Hydraulic Solenoid Valve Coil

,

4WE Series Hydraulic Solenoid Valve Coil

,

Hydac 4WE Series Bobina

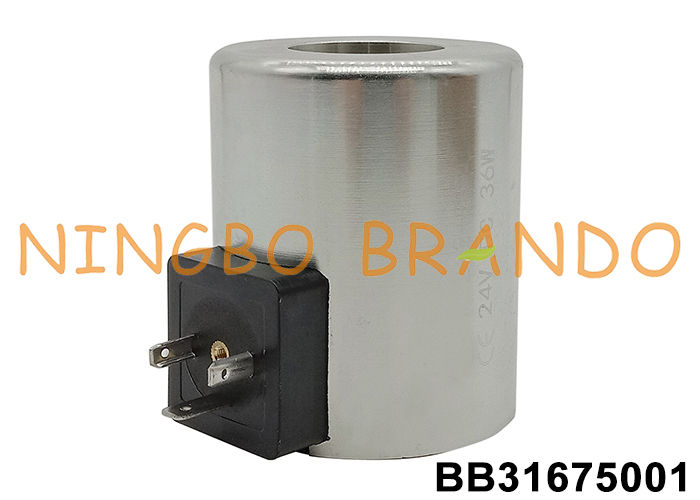

Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V



This is hydraulic solenoid coil for Hydac 4WE series hydraulic solenoid valves; Ordering code: 4251228, 4251230, 4251232,4251233, 4251234, 4251257, 438459, 4407514; Voltage: 12VDC, 24VDC; Power: 30W. The solenoid coil is the main part of a solenoid. A solenoid consists of the coil, the tube, and the armature. BRANDO manufactures and supplies different types of solenoid coils for many hydraulic solenoid valves. Our solenoid coil can be used for directional valves, proportional valves, cartridge valves, pumps and much more.

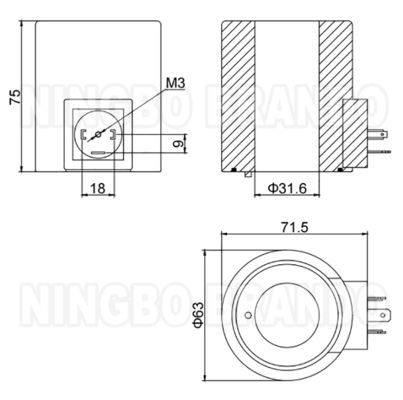

Dimension of Hydraulic Solenoid Valve Coil:

Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 0

BRANDO Model
BB31675001
Voltages
12VDC, 24VDC, 110VAC, 220VAC
Power
30W
Other voltage and power can be customized
Connector
DIN43650A
Insulation Class
H



BRANDO Solenoid Valve Coils Production Video:



More Hydraulic Solenoid Coils fo you to choose:

Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 1 Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 2 Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 3 Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 4
Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 5 Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 6 Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 7 Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V 8


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
