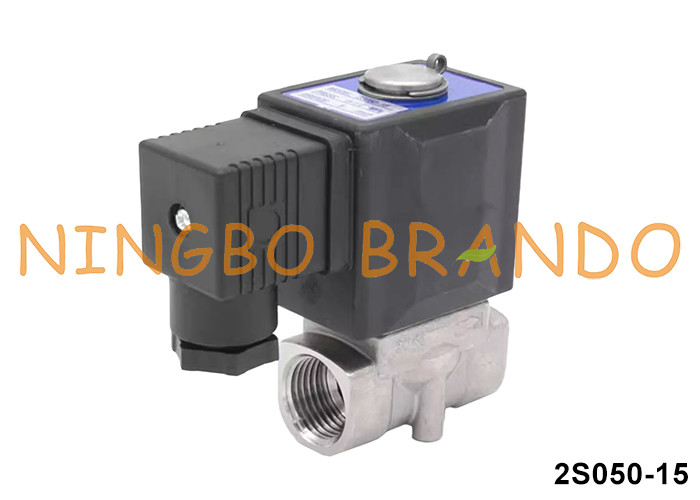

Name: 2S050-15 1/2'' Airtac Type Solenoid Valve Stainless Steel 304 220V 110V 24V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 2S050-15
Price: 26.00 USD
Availability: InStock

Thuis Producten De Klep van de roestvrij staalsolenoïde

2S050-15 1/2'' Airtac Type Solenoid Valve Stainless Steel 304 220V 110V 24V

Productdetails:

Plaats van herkomst:	Ningbo, China
Merknaam:	BRANDO
Certificering:	None
Modelnummer:	2S050-15

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	100 stuks
Prijs:	Onderhandelbaar
Verpakking Details:	Doos, karton, pallet
Levertijd:	Onderhandeling
Betalingscondities:	T/T, PayPal, Western Union
Levering vermogen:	100000 stuks per maand

Contact

Gedetailleerde productomschrijving

Product name:	Solenoïde klep	Portgrootte:	1/2“
grootte van de opening:	5 mm	Materiaal behuizing:	Roestvrij staal 304
Zeehondenmateriaal:	NBR (standaard), EPDM, FKM (facultatief)	Werkmedium:	Water, Lucht, Gas, Vloeistof, enz.
Functie:	2 normaal Gesloten manier	Actie:	Rechtstreeks
Werkdruk:	0 tot 10 bar	Spanning:	220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Markeren:	Airtac Solenoid Valve 2S050-15 , Stainless Steel Water Solenoid Valve , Solenoid Valve Stainless Steel 1/2''

2S050-15 Airtac Type Stainless Steel Solenoid Valve

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, etc

2. Max Working Pressure: 10 bar

3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)

4. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''

5. Orifice Size: 3mm, 5mm, 15mm, 20mm, 25mm

6. Body Material: Stainless Steel 304

7. Seal Material: NBR (Standard), EPDM, FKM

8. Operation: Direct Acting (DN3 to DN5), Pilot Operated (DN15 to DN25)

9. Function: 2 Way Normally Closed

10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Model No	2S030-06	2S030-08	2S050-10	2S050-15	2S150-10	2S150-15	2S200-20	2S250-25
Port Size	1/8''	1/4''	3/8''	1/2''	3/8''	1/2''	3/4''	1''
Orifice Size	3mm	3mm	5mm	5mm	15mm	15mm	20mm	25mm
CV	0.33	0.33	0.83	0.83	5.5	5.5	9.5	12.5
Body Material	Stainless Steel 304
Seal Material	NBR (Standard), EPDM, FKM
Working Medium	Water, Air, Gas, Liquid, etc
Working Temperature	NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃
Working Pressure	0 to 10 bar				0.5 to 10 bar
Operation	Direct Acting				Pilot Operated
Function	2 Way Normally Closed
Supply Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Main Dimension:

Model No	Port	A	B	C	D	L
2S030-06	1/8''	60	25	70	41	16
2S030-08	1/4''	60	25	70	41	16
2S050-10	3/8''	72	31	85	52	23
2S050-15	1/2''	72	31	85	52	23
2S150-10	3/8''	92	46	105	70	/
2S150-15	1/2''	92	46	105	70	/
2S200-20	3/4''	96	53	113	82	/
2S250-25	1''	102	59	122	92	/
