Name: K8 Findeva Type Pneumatic Ball Vibrator For Industrial Powder Cement Bin
Brand: Ningbo Brando Hardware Co., Ltd
SKU: K8
Price: 49.10 USD
Availability: InStock

Thuis Producten pneumatische slangmontage

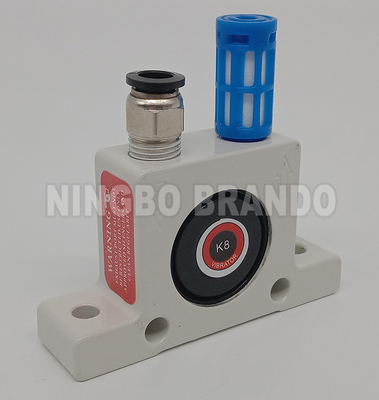

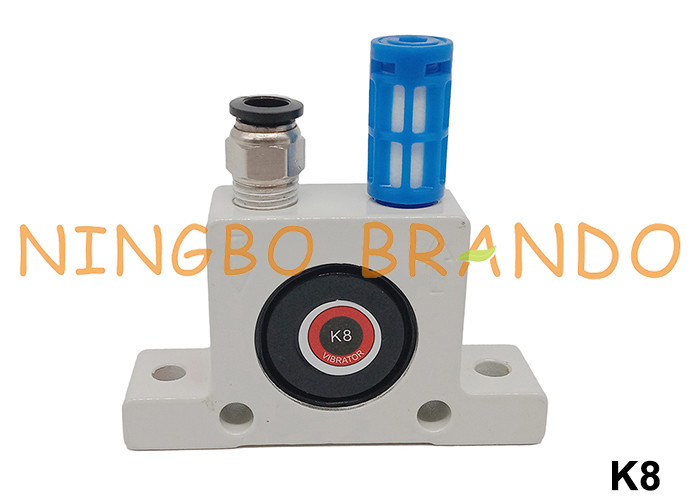

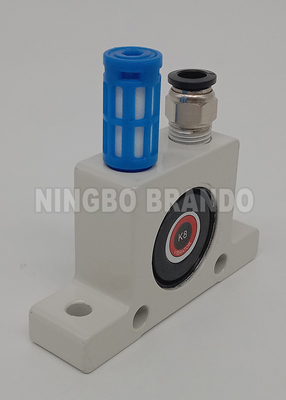

K8 Findeva Type Pneumatic Ball Vibrator For Industrial Powder Cement Bin

Productdetails:

Plaats van herkomst:	Ningbo, China
Merknaam:	BRANDO
Certificering:	CE, ISO
Modelnummer:	K8

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	200 stuks
Prijs:	Onderhandelbaar
Verpakking Details:	Doos, karton, pallet
Levertijd:	7 tot 14 werkdagen
Betalingscondities:	T/T, Western Union, Paypal
Levering vermogen:	200000 stuks per maand

Contact

Gedetailleerde productomschrijving

Productnaam:

Pneumatische balvibrator

Portgrootte:

G1/4“

Trilling (6 bar):

35000 t/min

Middelpuntvliedende kracht (6 bar):

360 N

Markeren:

K8 Pneumatic Ball Vibrator

Findeva Type Pneumatic Ball Vibrator

K8 Pneumatic Air Ball Vibrator

K8 Findeva Type Pneumatic Ball Vibrator For Industrial Powder Cement Bin

This is K8 pneumatic ball vibrator. Pneumatic vibrator is a versatile piece of equipment that is essential to many industries. For example, the pneumatic vibrator is used to remove excess moisture and pockets of air from freshly poured concrete ensuring that the end result is uniform, attractive and above all, safe. In agricultural settings these easy to use vibrators are responsible for emptying silos, among other things, while in pharmaceuticals a pneumatic vibrator can separate fine powders or be used as a feeding mechanism.

Main Dimension of K Series Pneumatic Ball Vibrators:

K8 Findeva Type Pneumatic Ball Vibrator For Industrial Powder Cement Bin 0

Model	A (mm)	Width (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (Thread)
K-8	50	20	86	68	12	7	40	G1/4''
K-10	50	20	86	68	12	7	40	G1/4''
K-13	65	24	113	90	16	9	50	G1/4''
K-16	65	27	113	90	16	9	50	G1/4''
K-20	80	33	128	104	16	9	60	G1/4''
K-25	80	38	128	104	16	9	60	G1/4''
K-30	100	44	160	130	20	11	80	G3/8''
K-36	100	50	160	130	20	11	80	G3/8''

Technical Data of K Series Pneumatic Ball Vibrators:

Model	Vibrations (x1000 RPM)			Centrifugal Force (N)			Air Consumption (l/min)
Model	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar
K-8	25.5	31.0	35.0	130	260	360	83	145	195
K-10	22.5	28.0	34.5	250	470	710	92	150	200
K-13	15.0	18.5	22.5	320	550	870	94	158	225
K-16	13.0	17.0	19.5	450	800	1100	122	200	280
K-20	10.5	14.5	16.5	720	1220	1720	130	230	340
K-25	9.2	12.2	14.0	930	1570	2050	160	290	425
K-30	7.8	9.7	12.5	1510	2470	3210	215	375	570
K-36	7.3	9.0	10.0	2060	3150	4050	260	475	675

Construction of K Series Pneumatic Ball Vibrators:

K8 Findeva Type Pneumatic Ball Vibrator For Industrial Powder Cement Bin 1

More Pneumatic Vibrators for your to choose:

GT Series

Pneumatic Turbine Vibrators

K Series

Pneumatic Ball Vibrators

R Series

Pneumatic Roller Vibrator

More Accessories for Pneumatic Vibratos:


Pneumatic Fitting	Pneumatic Silencer

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

label:

Contactpersoon: Mr. Brandon Bao

Tel.: 86-13454729544

Fax: 86-574-83879820
