Name: Triple Head DIN43650A Solenoid Valve Connector With Molded Cable
Brand: Ningbo Brando Hardware Co., Ltd
SKU: DIN43650AX3-CB
Price: 0.10 USD
Availability: InStock

Thuis Producten De Schakelaar van de solenoïderol

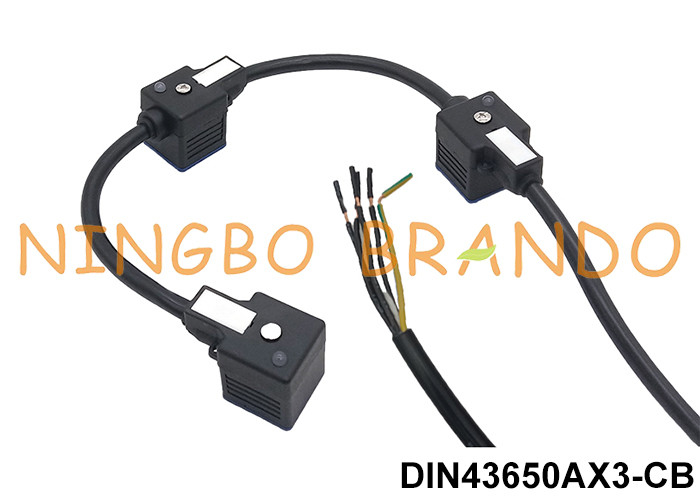

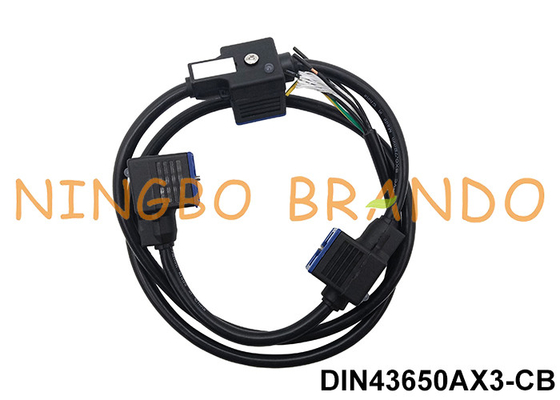

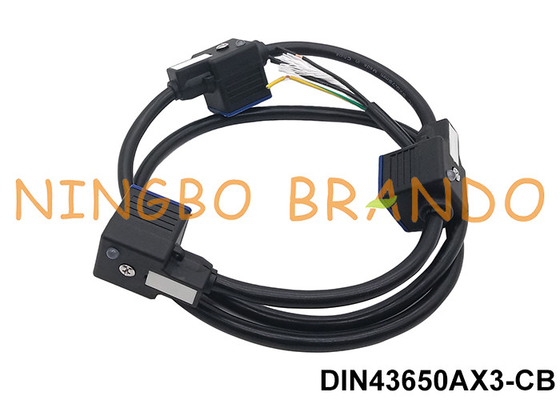

Triple Head DIN43650A Solenoid Valve Connector With Molded Cable

Productdetails:

Place of Origin:	Ningbo, China
Merknaam:	BRANDO
Certificering:	CE, ISO
Model Number:	DIN43650AX3-CB

Betalen & Verzenden Algemene voorwaarden:

Minimum Order Quantity:	200pcs
Prijs:	Onderhandelbaar
Packaging Details:	Plastic Bag, Carton, Pallet
Delivery Time:	10 to 15 working days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact

Gedetailleerde productomschrijving

Product Name:	Connector	Type:	DIN43650A
Contact Distance:	18mm	Protection Class:	IP67
First Head Pole No:	2P+E	Second Head Pole No:	3P+E
Third Head Pole No:	4P+E	Led Indicator:	With
Cable Jacket Material:	PVC (Standard), PUR (Optional)	Main Cable Length:	100cm (can be customized)
Head Distance:	15cm (can be customized)	Screw:	M3x30mm
Max Conductor Size:	3x1.5mm²	Max Current:	10A
Contact Resistance:	≤5mΩ	Working Voltage:	AC, DC
Markeren:	Triple Head Solenoid Valve Connector , DIN43650A Solenoid Valve Connector , Molded Cable DIN Valve Connectors

Triple Head DIN43650A Solenoid Valve Connector With Molded Cable

BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.

Features:

1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent

Technical Data:

DIN Type	DIN43650A
Contact Distance	18mm
First Head Pole Number	2 Poles + Ground
Second Head Pole Number	3 Poles + Ground
Third Head Pole Number	4 Poles + Ground
Max Current	10A
Contact Resistance	≤5mΩ
Screw	M3x30mm
Max Conductor Size	3x1.5mm²
Protection Class	IP67
Working Voltage	AC, DC
Head Distance	15cm (can be customized)
Cable Jacket Material	PVC (Standard), PUR (Optional)
Main Cable Length	100cm (can be customized)

Main Dimension:

Triple Head DIN43650A Solenoid Valve Connector With Molded Cable 0

Our Production:

Triple Head DIN43650A Solenoid Valve Connector With Molded Cable 1

Related Products:


DIN43650 Connetor	Solenoid Coil	Solenoid Armature	Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

label:

Contactpersoon: Mr. Brandon Bao

Tel.: 86-13454729544

Fax: 86-574-83879820
