Plaats van herkomst: | Ningbo, China |
Merknaam: | BRANDO |
Certificering: | CE, ISO |
Modelnummer: | PCF |
Min. bestelaantal: | 5 PCs |
---|---|
Prijs: | Negotiation |
Verpakking Details: | Pvc-de zak, toen binnendoos, kartonneert dan, toen pallet |
Levertijd: | 1 week na betaling |
Betalingscondities: | L/C, T/T, Western Union, Paypal, MoneyGram |
Levering vermogen: | 10000000pcs per maand |
Productnaam: | Pneumatische Slangmontage | Materiaal: | Plastiek/Messing |
---|---|---|---|
Ingepaste verbinding: | G, NPT | Werkdruk: | 0-0.8MPa |
Verbindend Buismateriaal: | PA, PU | Verbindende Buis OD: | 3, 4, 6, 8, 10, 12, 16 |
Middel: | Samengeperste lucht | Het werk Temperatuur: | 0-60℃ |
Hoog licht: | 1/4“ Pneumatische Slangmontage,8mm Pneumatische Slangmontage,Pneumatische Montageduw te verbinden |

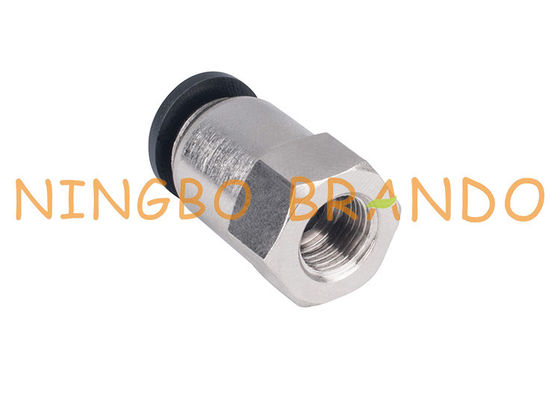

1/4'' 8mm Female Straight Push To Quick Connect Pneumatic Hose Fittings
Push-Fit fittings, also known as Push-to-Connect fittings are east-to-install pneumatic accessories that work by pushing the tubing in to engage it—it's like putting a cap lid on. Pneumatic fittings are used for valves, control panels and a large variety of other domestic and industrial applications.
Brando’s broad selection of pneumatic fittings provide connectivity solutions for a whole range of pneumatic applications. We offer a broad portfolio of products within our pneumatic fittings range and have plenty of material options and device configurations to suit the demands of your project which are easy to install. They also have the capability to withstand a variety of industrial media. Our pneumatic fittings are suitable for use in a wide variety of applications serving across many of today's major industrial markets.
Dimension & Order Code of Pneumatic Hose Fittings:
Straight Male Fitting:
Picture | Dimension | Part No. | R | D | L1 | L | S | Inner Hex |
PC4 | M5X0.8 | 4 | 6 | 22 | 10 | 3 | ||
M6X1 | 4 | 6 | 22 | 10 | 3 | |||
R1/8" | 4 | 8 | 21 | 12 | 3 | |||
R1/4" | 4 | 9 | 18 | 13 | 3 | |||
R3/8" | 4 | 10 | 20 | 17 | 3 | |||
R1/2" | 4 | 11 | 22 | 21 | 3 | |||
PC6 | M5X0.8 | 6 | 6 | 23 | 12 | 4 | ||
M6X1 | 6 | 6 | 23 | 12 | 4 | |||
R1/8" | 6 | 8 | 22 | 12 | 4 | |||
R1/4" | 6 | 9 | 22 | 13 | 4 | |||
R3/8" | 6 | 10 | 21 | 17 | 4 | |||
R1/2" | 6 | 11 | 23 | 21 | 4 | |||
PC8 | R1/8" | 8 | 8 | 27 | 14 | 4 | ||
R1/4" | 8 | 9 | 24 | 14 | 6 | |||
R3/8" | 8 | 10 | 22 | 17 | 6 | |||
R1/2" | 8 | 11 | 23 | 21 | 6 | |||
PC10 | R1/8" | 10 | 8 | 29 | 27 | 4 | ||
R1/4" | 10 | 9 | 30 | 17 | 6 | |||
R3/8" | 10 | 10 | 28 | 17 | 8 | |||
R1/2" | 10 | 11 | 24 | 21 | 8 | |||
PC12 | R1/8" | 12 | 8 | 31 | 19 | 4 | ||
R1/2" | 12 | 9 | 32 | 19 | 6 | |||
R3/8" | 12 | 10 | 29 | 19 | 10 | |||
R1/2" | 12 | 11 | 31 | 21 | 10 |
Elbow Push Male Fitting:
Picture | Dimension | Part No. | R | D | D1 | L1 | L | L' | S |
PL4 | M5X0.8 | 4 | 11 | 6 | 19 | 25 | 10 | ||
M6X1 | 4 | 11 | 6 | 19 | 25 | 10 | |||
R1/8" | 4 | 11 | 8 | 19 | 27 | 12 | |||
R1/4" | 4 | 11 | 9 | 19 | 28 | 13 | |||
R3/8" | 4 | 11 | 10 | 19 | 30 | 17 | |||
R1/2" | 4 | 11 | 11 | 19 | 31 | 21 | |||
PL6 | M5X0.8 | 6 | 13 | 6 | 20 | 26 | 12 | ||
M6X1 | 6 | 13 | 6 | 20 | 26 | 12 | |||
R1/8" | 6 | 13 | 8 | 20 | 28 | 12 | |||
R1/4" | 6 | 13 | 9 | 20 | 29 | 13 | |||
R3/8" | 6 | 13 | 10 | 20 | 31 | 17 | |||
R1/2" | 6 | 13 | 11 | 20 | 32 | 21 | |||
PL8 | R1/8" | 8 | 14 | 8 | 23 | 31 | 14 | ||
R1/4" | 8 | 14 | 9 | 23 | 32 | 14 | |||
R3/8" | 8 | 14 | 10 | 23 | 33 | 17 | |||
R1/2" | 8 | 14 | 11 | 23 | 35 | 21 | |||
PL10 | R1/8" | 10 | 18 | 8 | 27 | 35 | 27 | ||
R1/4" | 10 | 18 | 9 | 27 | 36 | 17 | |||
R3/8" | 10 | 18 | 10 | 27 | 37 | 17 | |||
R1/2" | 10 | 18 | 11 | 27 | 39 | 21 | |||
PL12 | R1/8" | 12 | 21 | 8 | 30 | 37 | 19 | ||
R1/2" | 12 | 21 | 9 | 30 | 38 | 19 | |||
R3/8" | 12 | 21 | 10 | 30 | 39 | 19 | |||
R1/2" | 12 | 21 | 11 | 30 | 41 | 21 |
Branch Tee Male Fitting:
Picture | Dimension | Part No. | R | D | D1 | L1 | L | L' | S |
PT4 | M5X0.8 | 4 | 11 | 6 | 19 | 25 | 10 | ||
M6X1 | 4 | 11 | 6 | 19 | 25 | 10 | |||
R1/8" | 4 | 11 | 8 | 19 | 27 | 12 | |||
R1/4" | 4 | 11 | 9 | 19 | 28 | 13 | |||
R3/8" | 4 | 11 | 10 | 19 | 30 | 17 | |||
R1/2" | 4 | 11 | 11 | 19 | 31 | 21 | |||
PT6 | M5X0.8 | 6 | 13 | 6 | 20 | 26 | 12 | ||
M6X1 | 6 | 13 | 6 | 20 | 26 | 12 | |||
R1/8" | 6 | 13 | 8 | 20 | 28 | 12 | |||
R1/4" | 6 | 13 | 9 | 20 | 29 | 13 | |||
R3/8" | 6 | 13 | 10 | 20 | 31 | 17 | |||
R1/2" | 6 | 13 | 11 | 20 | 32 | 21 | |||
PT8 | R1/8" | 8 | 14 | 8 | 23 | 31 | 14 | ||
R1/4" | 8 | 14 | 9 | 23 | 32 | 14 | |||
R3/8" | 8 | 14 | 10 | 23 | 33 | 17 | |||
R1/2" | 8 | 14 | 11 | 23 | 35 | 21 | |||
PT10 | R1/8" | 10 | 18 | 8 | 27 | 35 | 27 | ||
R1/4" | 10 | 18 | 9 | 27 | 36 | 17 | |||
R3/8" | 10 | 18 | 10 | 27 | 37 | 17 | |||
R1/2" | 10 | 18 | 11 | 27 | 39 | 21 | |||
PT12 | R1/8" | 12 | 21 | 8 | 30 | 37 | 19 | ||
R1/2" | 12 | 21 | 9 | 30 | 38 | 19 | |||
R3/8" | 12 | 21 | 10 | 30 | 39 | 19 | |||
R1/2" | 12 | 21 | 11 | 30 | 41 | 21 |
List of All Plastic Pneumatic Hose Fittings:
Choosing the Right Fittings for Your Pneumatic System:
Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contactpersoon: Brandon
Tel.: +8613454729544
